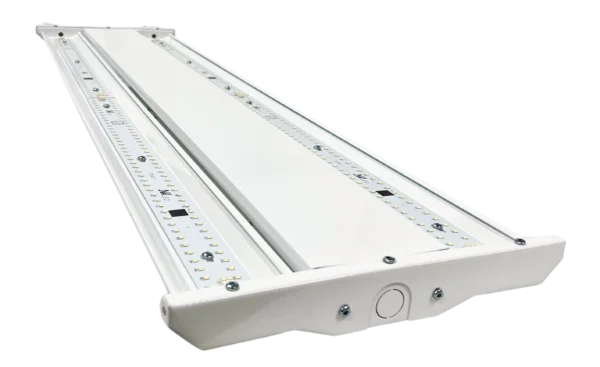

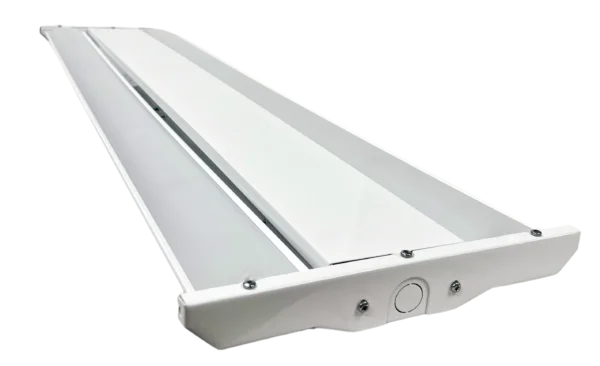

BA14-8C40K195L-UNVD1NW-NLSM, BA Series, 1'x4' Housing, 80 CRI, 4000K, 19,500 Lumens, 120-277V, 0-10V Dim 1%, Not Pre-Wired For 0-10V Dim, No Lens, Surface Mount

Model #: 100086
Login to view pricing and availability
No login? Please contact us to request dealer credentials.
  • Canadian made linear High-Bay!
  • Work shops, Farm Shop, Industrial Buildings and Commercial Buildings.
  • Easy to use flip lever common connectors for faster installation
  • Simple removable front cover to fasten fixture directly to any ceiling
  • Back Access is simple when hanging fixture on a chain
  • Chain mounting hooks available

Specifications

Electrical Specifications
Input Voltage:
120-277
Wattage:
130
IP Rating:
Dry Locations
Dimming:
0-10Volt
Certifications:
cQPSus

Light Specifications

Lumen Output:
19500
CCT:
4000K
Efficacy LM/W:
150
Beam Angle:
120

Installer Specifications

Fixture Material:
Steel
Fixture Colour:
White
Dimensions:

48" L x 12" W x 1.75" H
Mounting:
Flush Mount Or Chain Mount
Warranty:
5 Year
