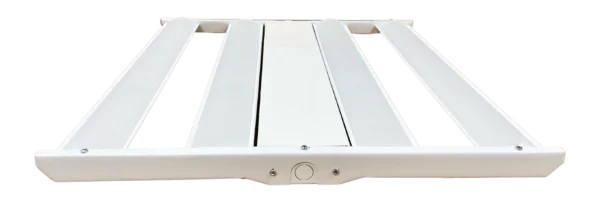

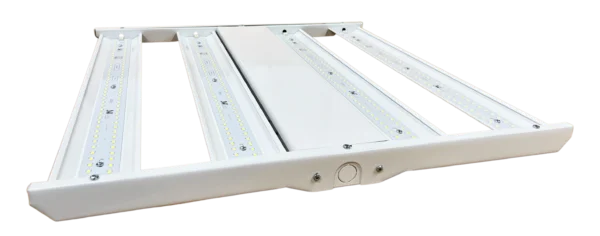

BA22-8C50K195L-347D1NW-NLSM, BA Series, 2'x2' Housing, 80 CRI, 5000K, 19,500 Lumens, 347V, 0-10V Dim 1%, Not Pre-Wired For 0-10V Dim, No Lens, Surface Mount

Model #: 100093
Login to view pricing and availability
No login? Please contact us to request dealer credentials.
  • Canadian made Square High-Bay!
  • Hobby shops, Truck Shop, Farm Shop/Shed, Industrial Buildings and Commercial Buildings.
  • 150 lumens per watt
  • Simple removable front cover to fasten fixture directly to any ceiling
  • Back Access is simple when hanging fixture on a chain
  • Low Profile at only 1.75" Thick!

Specifications

Electrical Specifications
Input Voltage:
347V
Wattage:
130
IP Rating:
Dry Locations
Dimming:
0-10Volt
Certifications:
cQPSus

Light Specifications

Lumen Output:
19500
CCT:
5000K
Efficacy LM/W:
150
Beam Angle:
120

Installer Specifications

Fixture Material:
Steel
Fixture Colour:
White
Dimensions:

24" L x 24" W x 1.75" H
Mounting:
Flush Mount Or Chain Mount
Warranty:
5 Year
