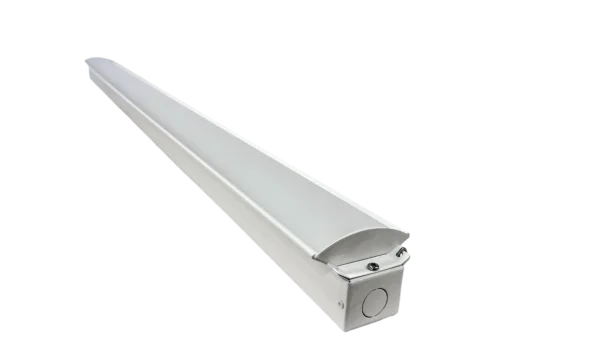

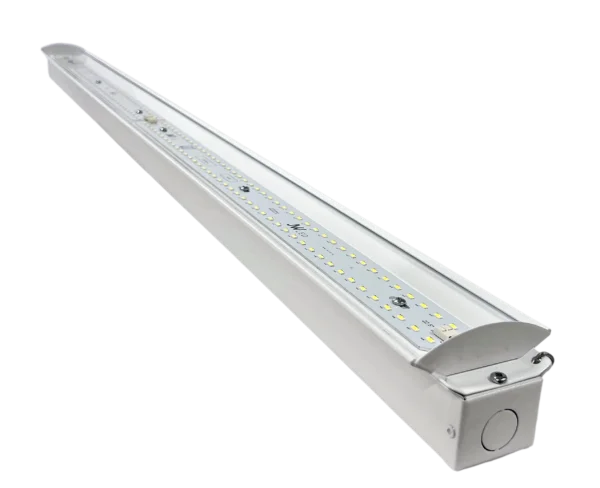

SP4-8C65K097L-UNVD1NW-NLSM, SP Series, 4ft Linear Housing, 80 CRI, 6500K, 9,750 Lumens, 120-277V, 0-10V Dim 1%, Not Pre-Wired For 0-10V Dim, No Lens, Surface Or Chain Mountable

Name: SP4-8C65K097L-UNVD1NW-NLSM, SP Series, 4ft Linear Housing, 80 CRI, 6500K, 9,750 Lumens, 120-277V, 0-10V Dim 1%, Not Pre-Wired For 0-10V Dim, No Lens, Surface Or Chain Mountable
SKU: 100504
Price: 75.00 CAD
Availability: InStock

Model #: 100504

Login to view pricing and availability

No login? Please contact us to request dealer credentials.

Fast 8' Fixture Fix (Connect 2 - 4' Foot fixtures to create a Linear 8')
Canadian made linear Low-Bay!
Easy to use flip lever common connectors for faster installation
Flip open lid for installer friendly mounting
Back Access is simple when hanging fixture on a chain
High Efficacy at 150 lumens per wat

Specifications

Electrical Specifications

Input Voltage:

120-277

Wattage:

65

IP Rating:

Dry Locations

Dimming:

0-10Volt

Certifications:

cQPSus

Light Specifications

Lumen Output:

9750

CCT:

6500K

Efficacy LM/W:

150

Beam Angle:

120

Installer Specifications

Fixture Material:

Steel

Fixture Colour:

White

Dimensions:

48" L x 3" W x 3.25" H

Mounting:

Flush Mount Or Chain Mount

Warranty:

5 Year

Accessories

Frosted, Smooth, Acrylic, For SP4, 46.750
