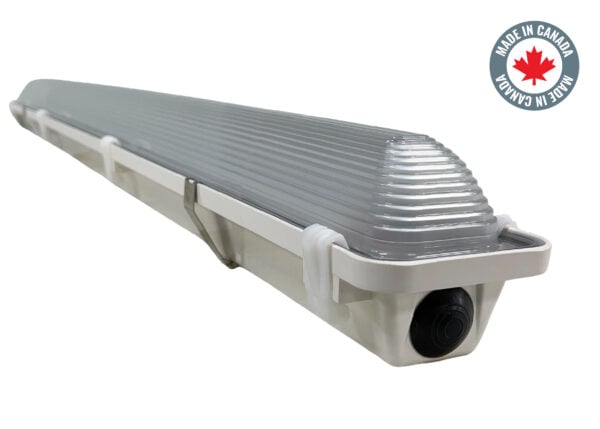

Winglight, 4 Foot Narrow Body Vaportight (Poultry Specific Lighting) 2,000- 8,000 Lumens

The Winglight Series is the culmination of extensive research and development in poultry lighting, providing flicker-free illumination with smooth, seamless dimming controlled by a 0-10V signal. The advanced internal circuitry ensures a flawless transition from darkness to light. With various color options and lumen outputs available, the Winglight is designed to enhance poultry performance according to your needs. Additionally, our 0-10V Bridge Controller allows easy integration with any poultry system that uses a 0-10V control signal, ensuring compatibility and precise control for optimal lighting results.

Login to view pricing and availability
Don’t have an account? Simply click "Request a Quote" fill out the RFQ form, and we'll get back to you promptly with pricing and availability.

Product Overview

Ordering Guide

Accessories

Downloads
IES Files

Application

This unit is engineered to integrate seamlessly with our 0-1 0V Winglight Bridge Controller, delivering smooth dimming performance with precise control. It's ideal for poultry applications requiring accurate and reliable lighting adjustments.

Features

  • Flicker-free design tested by poultry experts.
  • Winglight source-to-sink control compatible.
  • 0.1 % - 100% dimming provides precise lighting control.
  • Control up to 4 separate zones with 250-300 lights maximum per zone.
  • Compatible with any poultry control system featuring a 0-1 0V control signal.

Options

  • Wide range of lumen outputs to meet diverse requirements.
  • Variety of lens options available.
  • Customizable color temperature and CRI values for optimal lighting.
  • POM or stainless steel latch options.

Mounting

  • Surface - mounts directly to any ceiling or wall.
  • Suspension - chain hangers available as additional option.

Approvals

Approved for use in Canada and USA with QPS certification, NSF rated components, and NEMA 4X rating.

Warranty

Includes standard 5-year warranty-view our warranty policy for complete details

Ordering Guide

Example:
WLN4-8C40K0SSL-UNVD1NW-FRPMMB
WLN4
CRI CCT Lumens
8C 80 30K 3000K 080L 8,000
9C 90 40K 4000K 050L 5,000
- 50K 5000K 040L 4,000
- 65K 6500K 020L 2,000
Voltage Driver 0-10V Wiring
UNV 120-277V D1 0-10V PW Pre-Wired for DIM
- 0.1% Dim. -
- - -
- - -
Lens Mounting Options
CR Clear Ribbed MB Surface/Chain Mount Brackets Blank None
FR Frosted Ribbed NM No Mount Bracket’s CD2 2’ Whip Pre-Wired (Black)
CS Clear Smooth CH Chain Hanger Hooks CD3 3’ Whip Pre-Wired (Black)
FS Frosted Smooth - -
CRI CCT Lumens
8C 8030K 3000K080L 8,000
9C 9040K 4000K050L 5,000
-50K 5000K040L 4,000
-65K 6500K020L 2,000
Voltage Driver 0-10V Wiring
UNV 120-277VD1 0-10VPW Pre-Wired for DIM
-0.1% Dim.-
---
---
Lens Latches Mounting Options
CR Clear RibbedPM POM (Nylon)MB Surface/Chain Mount BracketsBlank None
FR Frosted RibbedSS Stainless SteelNM No Mount Bracket’sCD2 2’ Whip Pre-Wired (Black)
CS Clear Smooth-CH Chain Hanger HooksCD3 3’ Whip Pre-Wired (Black)
FS Frosted Smooth---
CRI CCT Lumens
8C 80 30K 3000K 080L 8,000
9C 90 40K 4000K 050L 5,000
- 50K 5000K 040L 4,000
- 65K 6500K 020L 2,000
Voltage Driver 0-10V Wiring
UNV 120-277V D1 0-10V PW Pre-Wired for DIM
- 0.1% Dim. -
- - -
- - -
Lens Mounting Options
CR Clear Ribbed MB Surface/Chain Mount Brackets Blank None
FR Frosted Ribbed NM No Mount Bracket’s CD2 2’ Whip Pre-Wired (Black)
CS Clear Smooth CH Chain Hanger Hooks CD3 3’ Whip Pre-Wired (Black)
FS Frosted Smooth - -
