Industrial. Agricultural. Commercial. Canadian Lighting Manufacturer

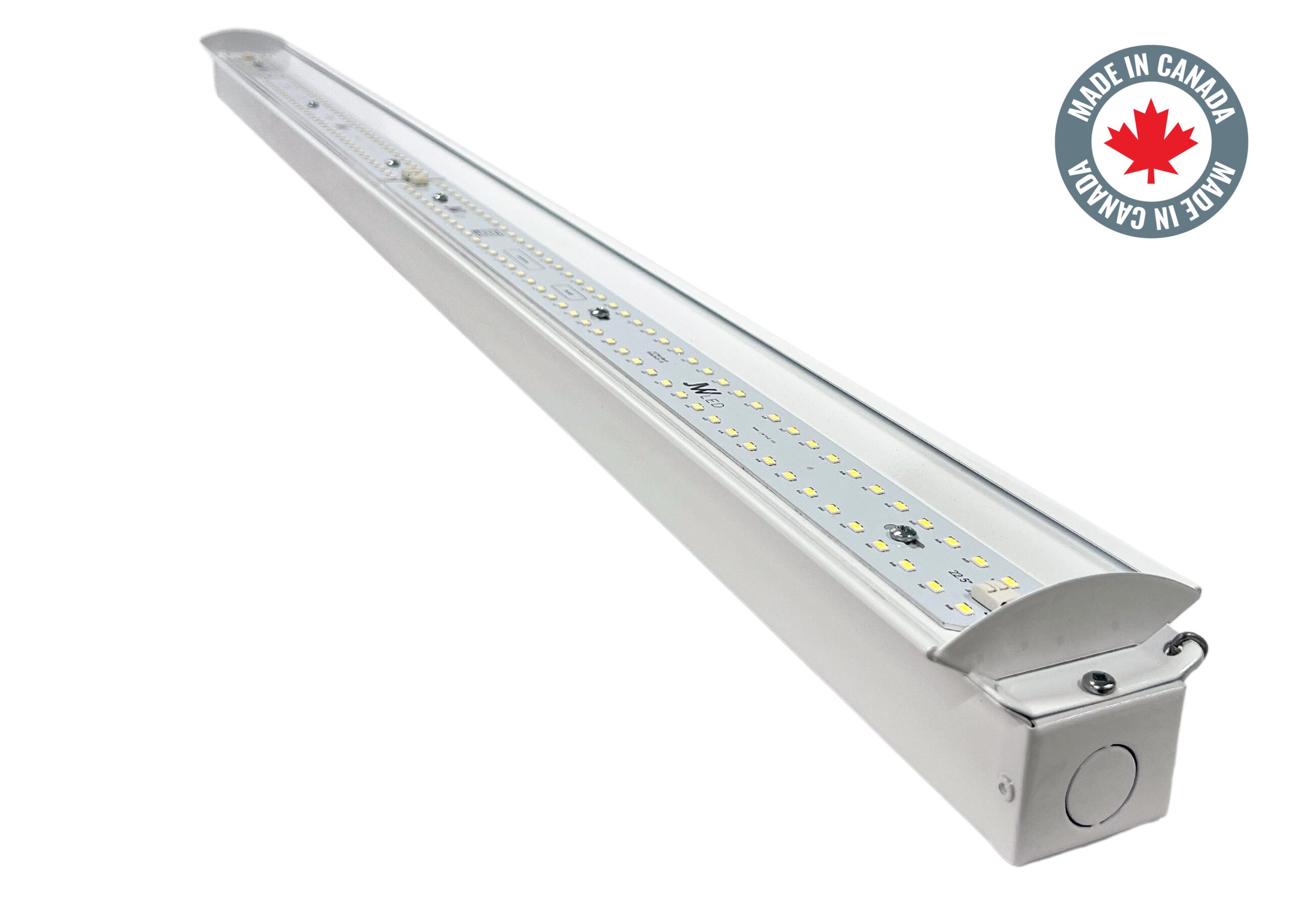

The SP Series Linear 4’ fixture is meticulously engineered to provide expansive illumination with a wide distribution angle, making it perfect for applications needing broad coverage on medium to low ceilings. It offers versatility with multiple lumen packages and mounting options. Its innovative design facilitates easy row mounting, transforming two fixtures into an 8-foot unit, suitable for installation heights ranging from 6 to 20 feet. Handcrafted in Ontario, Canada, it represents the ideal choice for your lighting requirements.
This unit is an excellent choice for industrial, commercial, and agricultural applications including metal fabricating shops, mezzanines, garages, offices, hallways, workbenches, grocery stores, tool stores, retail stores, aircraft hangars, repair rooms, hobby shops, and many other applications.
Approved for use in Canada and USA, QPS certified.
Includes standard 5-year warranty-view our warranty policy for complete details.
| CRI | CCT | Lumens |
|---|---|---|
| 8C 80 | 30K 3000K | 120L 12,000 |
| 9C 90 | 40K 4000K | 097L 9,750 |
| - | 50K 5000K | 080L 8,000 |
| - | 65K 6500K | 060L 6,000 |
| - | - | 040L 4,000 |
| - | - | 020L 4,000 |
| Voltage | Driver | 0-10V Wiring |
|---|---|---|
| UNV 120-277V | D1 0-10V 1% | NW Not Wired For Dim |
| 347 347V | - | PW Pre-Wired for DIM |
| - | - | - |
| - | - | - |
| - | - | - |
| - | - | - |
| Lens | Mounting | Options |
|---|---|---|
| NL No Lens | MB Surface/Chain Mount Brackets | Blank None |
| FS Frosted Smooth | NM No Mount Brackets | RTP Retail Packaging |
| - | - | CD3 3’ Whip Pre-Wired (Black) |
| - | - | CP3 3’ Cord Male Plug (Black) |
| - | - | CP5 5’ Cord Male Plug (Black) |
| - | - | 8FE 8 Foot Extension |
| CRI | CCT | Lumens |
|---|---|---|
| 8C 80 | 30K 3000K | 120L 12,000 |
| 9C 90 | 40K 4000K | 097L 9,750 |
| - | 50K 5000K | 080L 8,000 |
| - | 65K 6500K | 060L 6,000 |
| - | - | 040L 4,000 |
| - | - | 020L 4,000 |
| Voltage | Driver | 0-10V Wiring |
|---|---|---|
| UNV 120-277V | D1 0-10V 1% | NW Not Wired For Dim |
| 347 347V | - | PW Pre-Wired for DIM |
| - | - | - |
| - | - | - |
| - | - | - |
| - | - | - |
| Lens | Mounting | Options |
|---|---|---|
| NL No Lens | MB Surface/Chain Mount Brackets | Blank None |
| FS Frosted Smooth | NM No Mount Brackets | RTP Retail Packaging |
| - | - | CD3 3’ Whip Pre-Wired (Black) |
| - | - | CP3 3’ Cord Male Plug (Black) |
| - | - | CP5 5’ Cord Male Plug (Black) |
| - | - | 8FE 8 Foot Extension |
| CRI | CCT | Lumens |
|---|---|---|
| 8C 80 | 30K 3000K | 120L 12,000 |
| 9C 90 | 40K 4000K | 097L 9,750 |
| - | 50K 5000K | 080L 8,000 |
| - | 65K 6500K | 060L 6,000 |
| - | - | 040L 4,000 |
| - | - | 020L 4,000 |
| Voltage | Driver | 0-10V Wiring |
|---|---|---|
| UNV 120-277V | D1 0-10V 1% | NW Not Wired For Dim |
| 347 347V | - | PW Pre-Wired for DIM |
| - | - | - |
| - | - | - |
| - | - | - |
| - | - | - |
| Lens | Mounting | Options |
|---|---|---|
| NL No Lens | MB Surface/Chain Mount Brackets | Blank None |
| FS Frosted Smooth | NM No Mount Brackets | RTP Retail Packaging |
| - | - | CD3 3’ Whip Pre-Wired (Black) |
| - | - | CP3 3’ Cord Male Plug (Black) |
| - | - | CP5 5’ Cord Male Plug (Black) |
| - | - | 8FE 8 Foot Extension |

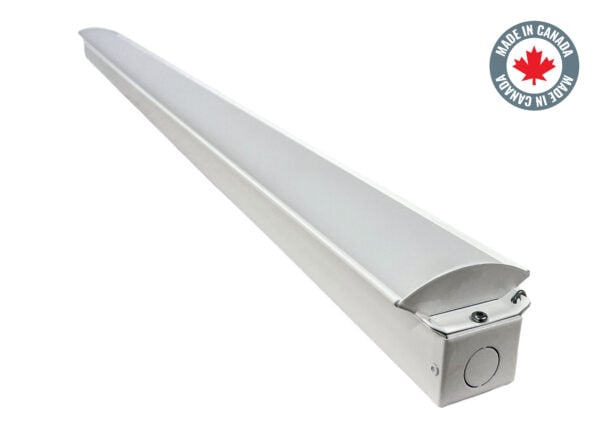

BA Series, 4 Foot Frosted Lens
Frosted diffusers help reduce the sharpness of the LED's
They can be removed or applied any time with a simple click in design
Sold in single units, 1 lens per LED strip is required in all BA and SP Series models
