Industrial. Agricultural. Commercial. Canadian Lighting Manufacturer

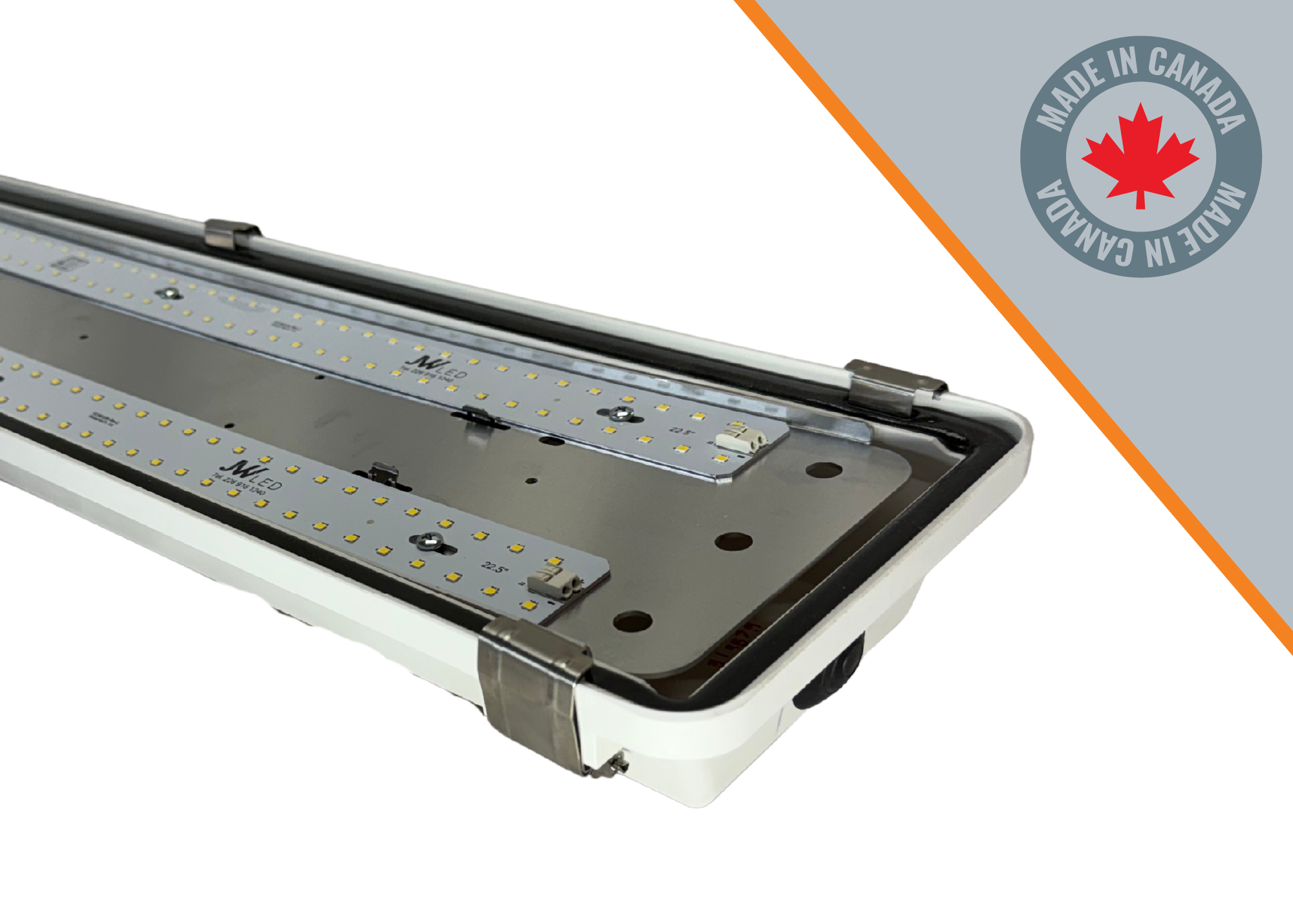

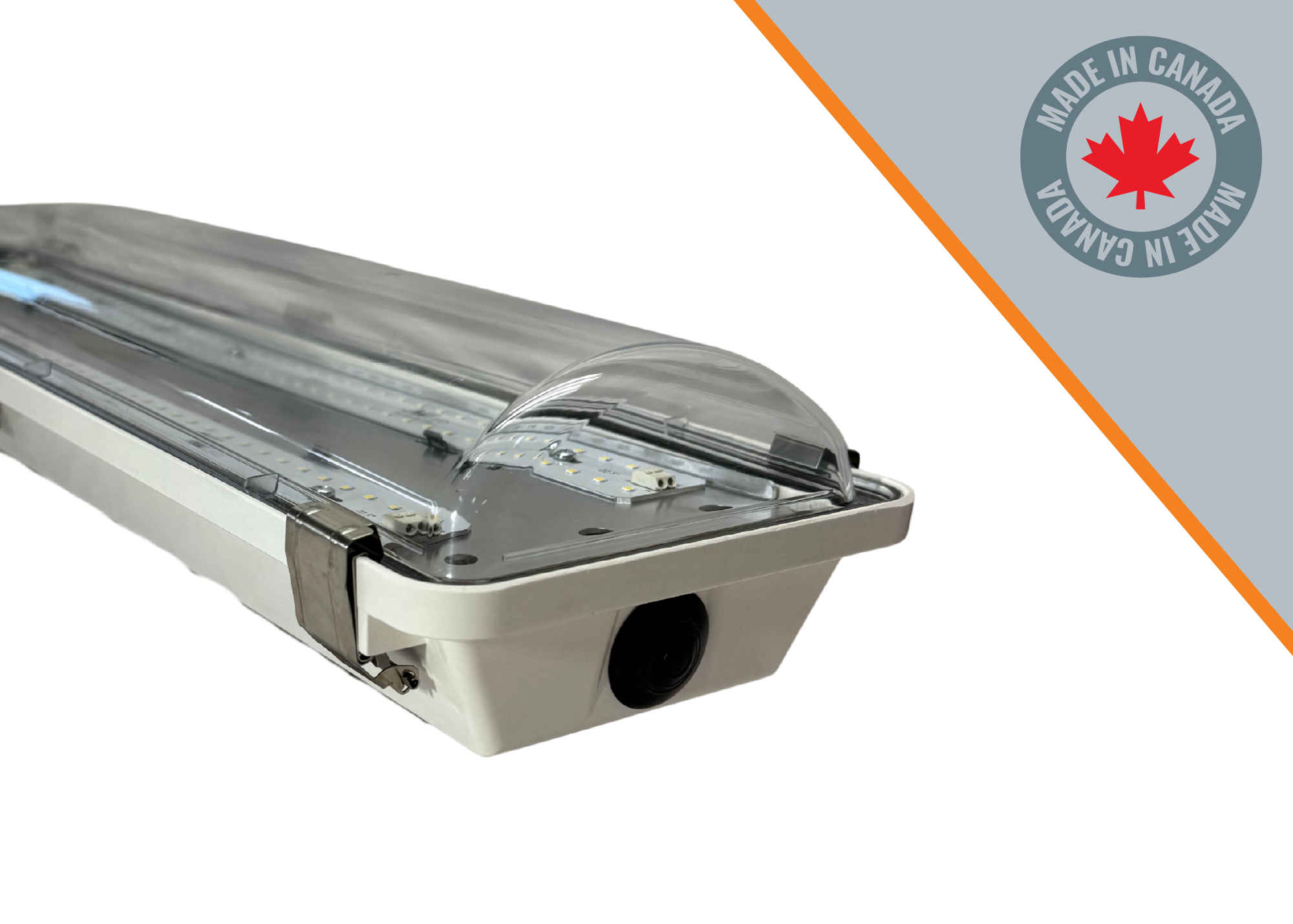

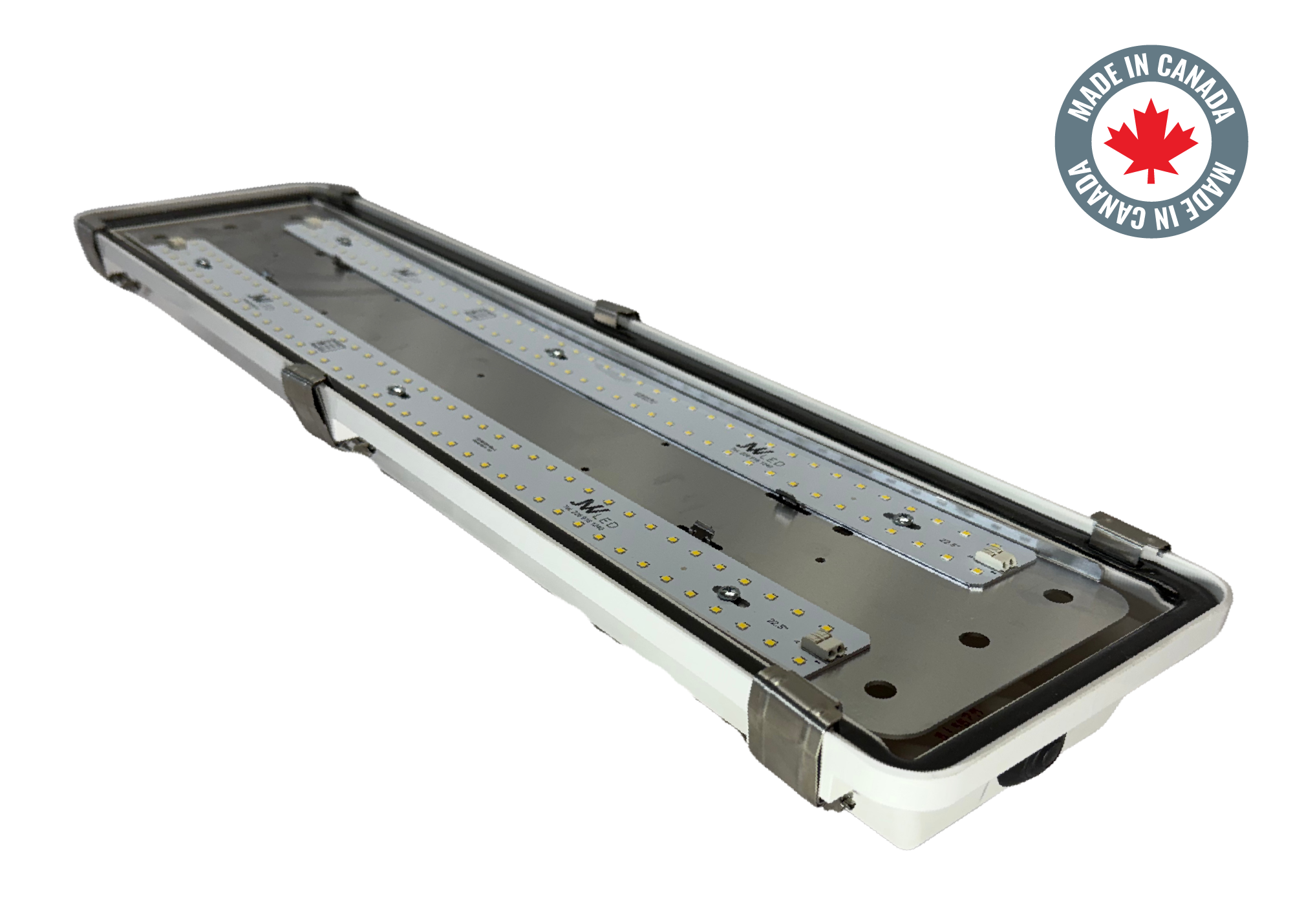

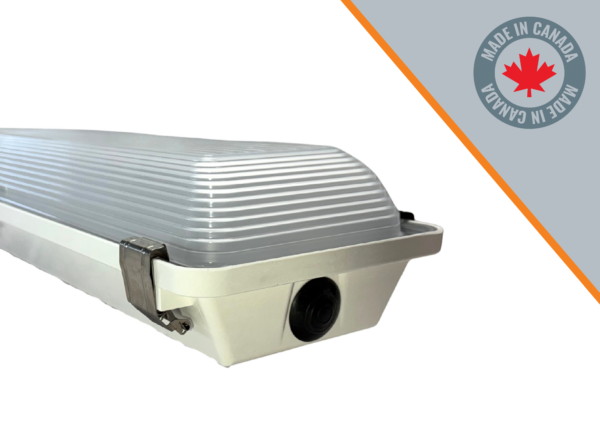

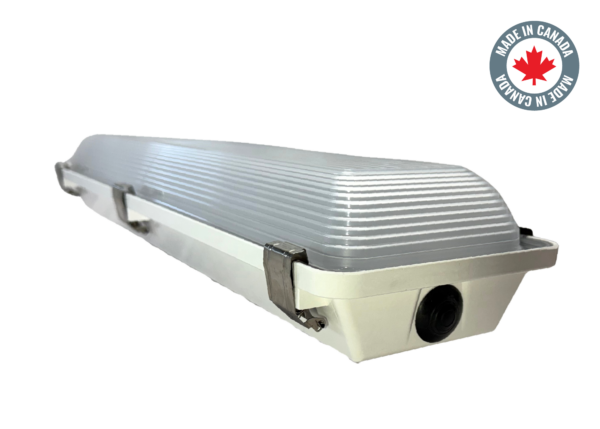

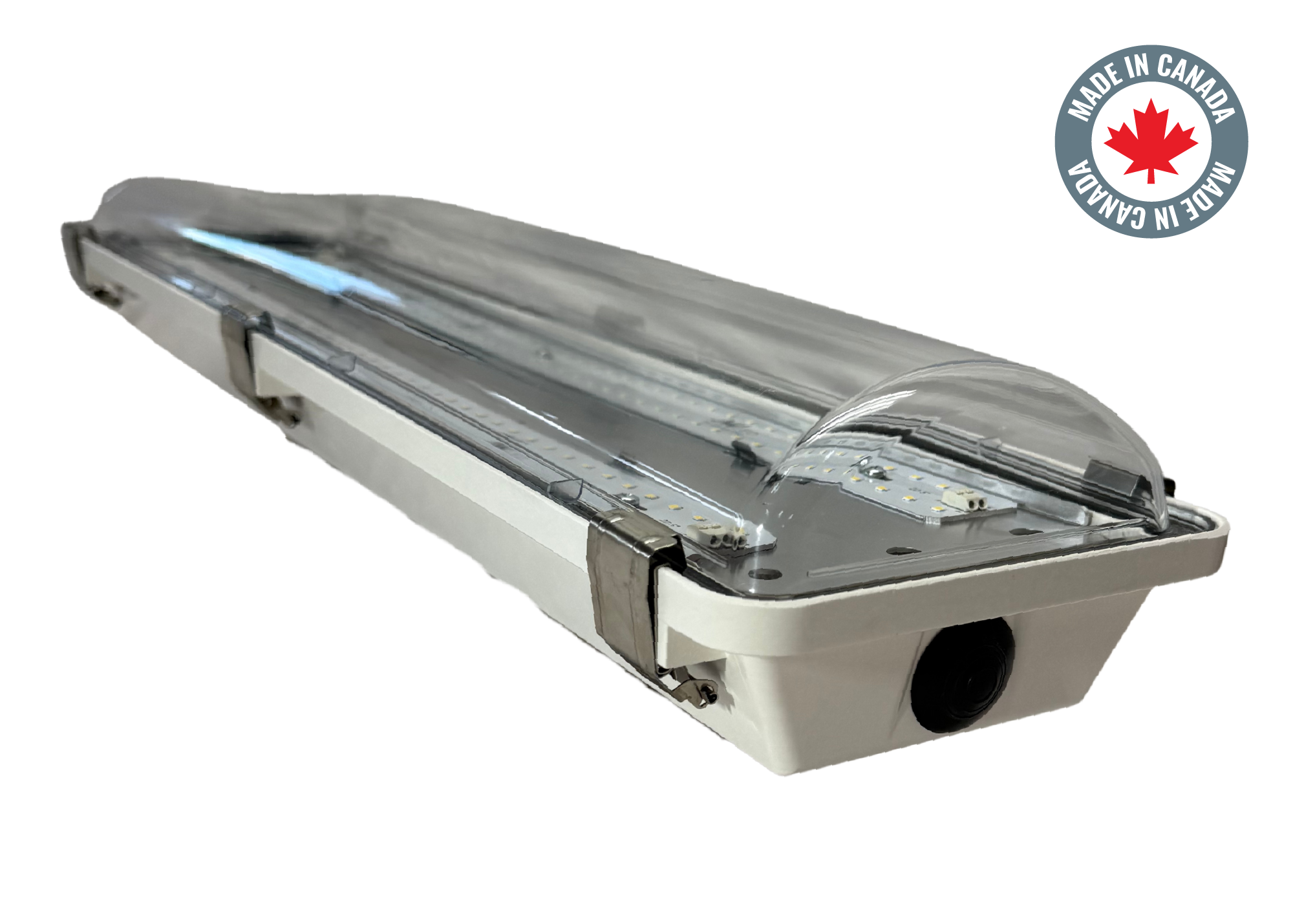

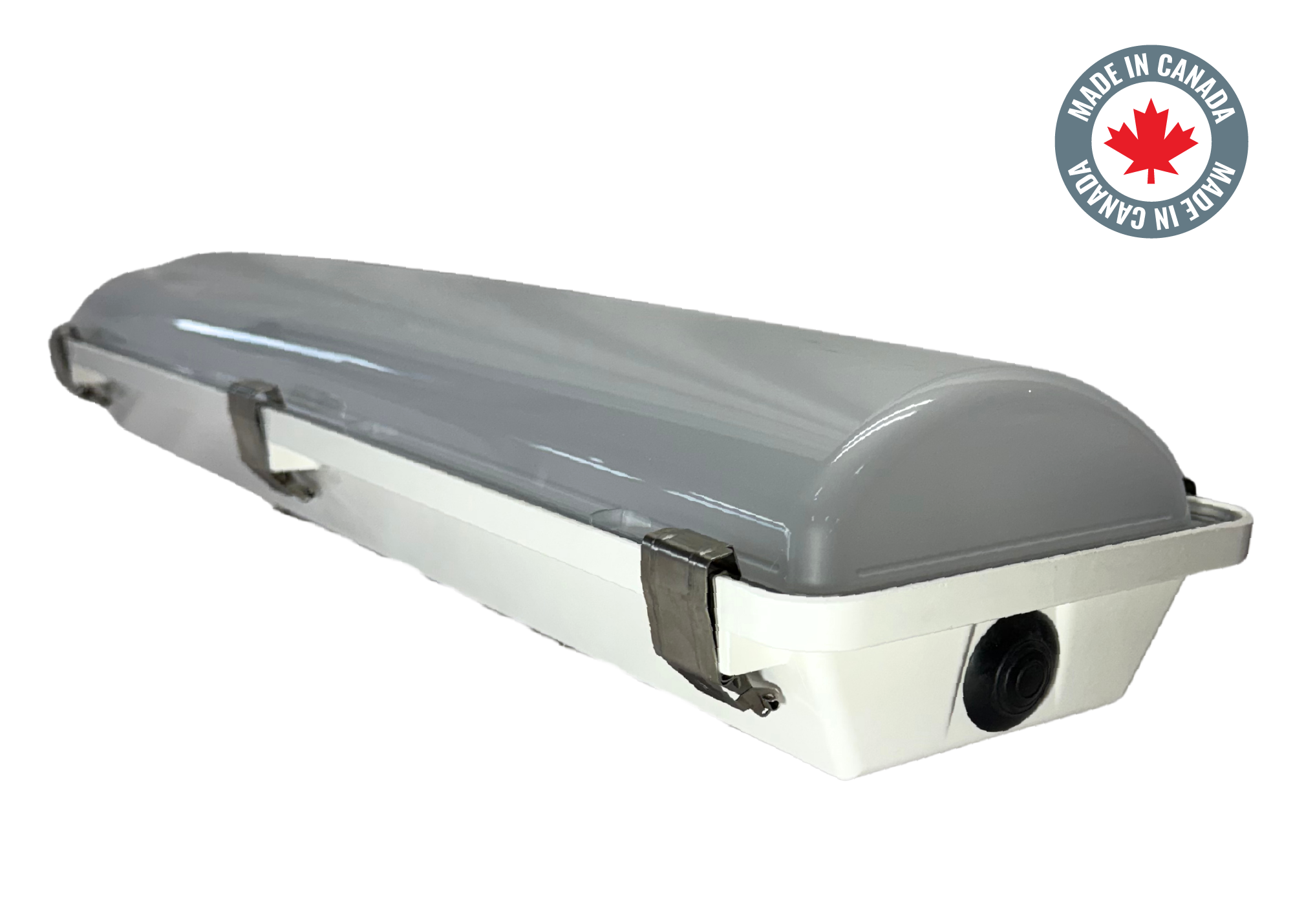

The LZ Series Standard Body 2’ fixture is a proven vaportight LED designed for applications requiring extensive coverage on low to high ceilings. This versatile unit offers multiple lumen packages and mounting configurations, featuring various latch and lens options to suit specific requirements. The casing is manufactured in the USA with durable construction and thick sealing for superior performance in dusty or wet environments, accommodating installation heights from 8 to 14 feet. Final assembly in Ontario, Canada ensures meticulous craftsmanship, making it the reliable lighting solution for your most demanding projects.
This unit excels in industrial, commercial, and agricultural settings where protection against water and dust is essential. It performs exceptionally in demanding applications including washbays, dairy barns, sheep barns, horse barns, pig barns, welding facilities, concrete plants, car washes, and numerous other challenging environments, making it an exceptional choice for the most demanding conditions.
Approved for use in Canada and USA, QPS certified.
Includes standard 5-year warranty-view our warranty policy for complete details.
| CRI | CCT | Lumens |
|---|---|---|
| 8C 80 | 30K 3000K | 080L 8,000 |
| 9C 90 | 40K 4000K | 060L 6,000 |
| - | 50K 5000K | 040L 4,000 |
| - | 65K 6500K | 020L 2,000 |
| - | - | - |
| Voltage | Driver | 0-10V Wiring |
|---|---|---|
| UNV 120-277V | D1 0-10V 1% | NW Not Wired For Dim |
| 347 347V | - | PW Pre-Wired for DIM |
| - | - | - |
| - | - | - |
| - | - | - |
| Lens | Mounting | Options |
|---|---|---|
| CR Clear Ribbed | MB Surface/Chain Mount Brackets | Blank None |
| FR Frosted Ribbed | WD 45° Mount Bracket | RTP Retail Packaging |
| CS Clear Smooth | NM No Mount Brackets | CD2 2’ Whip Pre-Wired (Black) |
| FS Frosted Smooth | - | CD3 3’ Whip Pre-Wired (Black) |
| - | - | SN1 PIR Motion Sensor (IP66) |
| CRI | CCT | Lumens |
|---|---|---|
| 8C 80 | 30K 3000K | 080L 8,000 |
| 9C 90 | 40K 4000K | 060L 6,000 |
| - | 50K 5000K | 040L 4,000 |
| - | 65K 6500K | 020L 2,000 |
| - | - | - |
| Voltage | Driver | 0-10V Wiring |
|---|---|---|
| UNV 120-277V | D1 0-10V 1% | NW Not Wired For Dim |
| 347 347V | - | PW Pre-Wired for DIM |
| - | - | - |
| - | - | - |
| - | - | - |
| Lens | Latches | Mounting | Options |
|---|---|---|---|
| CR Clear Ribbed | PM POM (Nylon) | MB Surface/Chain Mount Brackets | Blank None |
| FR Frosted Ribbed | SS Stainless Steel | WD 45° Mount Bracket | RTP Retail Packaging |
| CS Clear Smooth | - | NM No Mount Brackets | CD2 2’ Whip Pre-Wired (Black) |
| FS Frosted Smooth | - | - | CD3 3’ Whip Pre-Wired (Black) |
| - | - | - | SN1 PIR Motion Sensor (IP66) |
| CRI | CCT | Lumens |
|---|---|---|
| 8C 80 | 30K 3000K | 080L 8,000 |
| 9C 90 | 40K 4000K | 060L 6,000 |
| - | 50K 5000K | 040L 4,000 |
| - | 65K 6500K | 020L 2,000 |
| - | - | - |
| Voltage | Driver | 0-10V Wiring |
|---|---|---|
| UNV 120-277V | D1 0-10V 1% | NW Not Wired For Dim |
| 347 347V | - | PW Pre-Wired for DIM |
| - | - | - |
| - | - | - |
| - | - | - |
| Lens | Mounting | Options |
|---|---|---|
| CR Clear Ribbed | MB Surface/Chain Mount Brackets | Blank None |
| FR Frosted Ribbed | WD 45° Mount Bracket | RTP Retail Packaging |
| CS Clear Smooth | NM No Mount Brackets | CD2 2’ Whip Pre-Wired (Black) |
| FS Frosted Smooth | - | CD3 3’ Whip Pre-Wired (Black) |
| - | - | SN1 PIR Motion Sensor (IP66) |
