Industrial. Agricultural. Commercial. Canadian Lighting Manufacturer

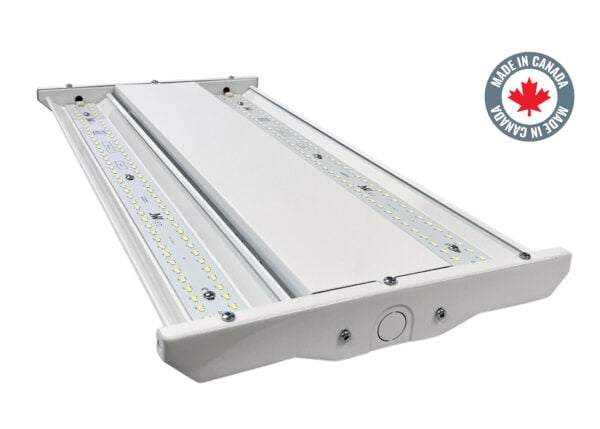

The BA Series 1’x2’ fixture is precision-engineered for expansive illumination with a wide 120-degree distribution angle, making it ideal for applications requiring broad coverage. Designed for medium to low ceilings, it offers versatility with various lumen packages and mounting options. Its robust thermal design ensures reliable performance in challenging conditions, suitable for installation heights from 6 to 20 feet. Handcrafted in Ontario, Canada, it’s the ideal choice for your lighting needs.
This unit excels in industrial, commercial, and agricultural environments including metal fabricating facilities, woodworking shops, storage buildings, warehouses, drive sheds, farm shops, grocery stores, retail spaces, aircraft hangars, hockey rinks, hobby shops, and countless other applications.
Approved for use in Canada and USA, QPS certified.
Includes standard 5-year warranty-view our warranty policy for complete details.
| CRI | CCT | Lumens |
|---|---|---|
| 8C 80 | 30K 3000K | 150L 15,000 |
| 9C 90 | 40K 4000K | 120L 12,000 |
| - | 50K 5000K | 097L 9,750 |
| - | 65K 6500K | 080L 8,000 |
| - | - | 060L 6,000 |
| - | - | 040L 4,000 |
| Voltage | Driver | 0-10V Wiring |
|---|---|---|
| UNV 120-277V | D1 0-10V 1% | NW Not Wired For Dim |
| 347 347V | - | PW Pre-Wired For DIM |
| - | - | - |
| - | - | - |
| - | - | - |
| - | - | - |
| Lens | Mounting | Options |
|---|---|---|
| NL No Lens | SM Surface Mount | Blank None |
| FS Frosted Smooth | CH Chain Hanger Hooks | RTP Retail Packaging |
| - | - | CD3 3’ Whip Pre-Wired (Black) |
| - | - | MS5 Motion Sensor for Aisleway |
| - | - | MS4 Motion Sensor For 360 |
| - | - | - |
| CRI | CCT | Lumens |
|---|---|---|
| 8C 80 | 30K 3000K | 150L 15,000 |
| 9C 90 | 40K 4000K | 120L 12,000 |
| - | 50K 5000K | 097L 9,750 |
| - | 65K 6500K | 080L 8,000 |
| - | - | 060L 6,000 |
| - | - | 040L 4,000 |
| Voltage | Driver | 0-10V Wiring |
|---|---|---|
| UNV 120-277V | D1 0-10V 1% | NW Not Wired For Dim |
| 347 347V | - | PW Pre-Wired For DIM |
| - | - | - |
| - | - | - |
| - | - | - |
| - | - | - |
| Lens | Mounting | Options |
|---|---|---|
| NL No Lens | SM Surface Mount | Blank None |
| FS Frosted Smooth | CH Chain Hanger Hooks | RTP Retail Packaging |
| - | - | CD3 3’ Whip Pre-Wired (Black) |
| - | - | MS5 Motion Sensor for Aisleway |
| - | - | MS4 Motion Sensor For 360 |
| - | - | - |
| CRI | CCT | Lumens |
|---|---|---|
| 8C 80 | 30K 3000K | 150L 15,000 |
| 9C 90 | 40K 4000K | 120L 12,000 |
| - | 50K 5000K | 097L 9,750 |
| - | 65K 6500K | 080L 8,000 |
| - | - | 060L 6,000 |
| - | - | 040L 4,000 |
| Voltage | Driver | 0-10V Wiring |
|---|---|---|
| UNV 120-277V | D1 0-10V 1% | NW Not Wired For Dim |
| 347 347V | - | PW Pre-Wired For DIM |
| - | - | - |
| - | - | - |
| - | - | - |
| - | - | - |
| Lens | Mounting | Options |
|---|---|---|
| NL No Lens | SM Surface Mount | Blank None |
| FS Frosted Smooth | CH Chain Hanger Hooks | RTP Retail Packaging |
| - | - | CD3 3’ Whip Pre-Wired (Black) |
| - | - | MS5 Motion Sensor for Aisleway |
| - | - | MS4 Motion Sensor For 360 |
| - | - | - |

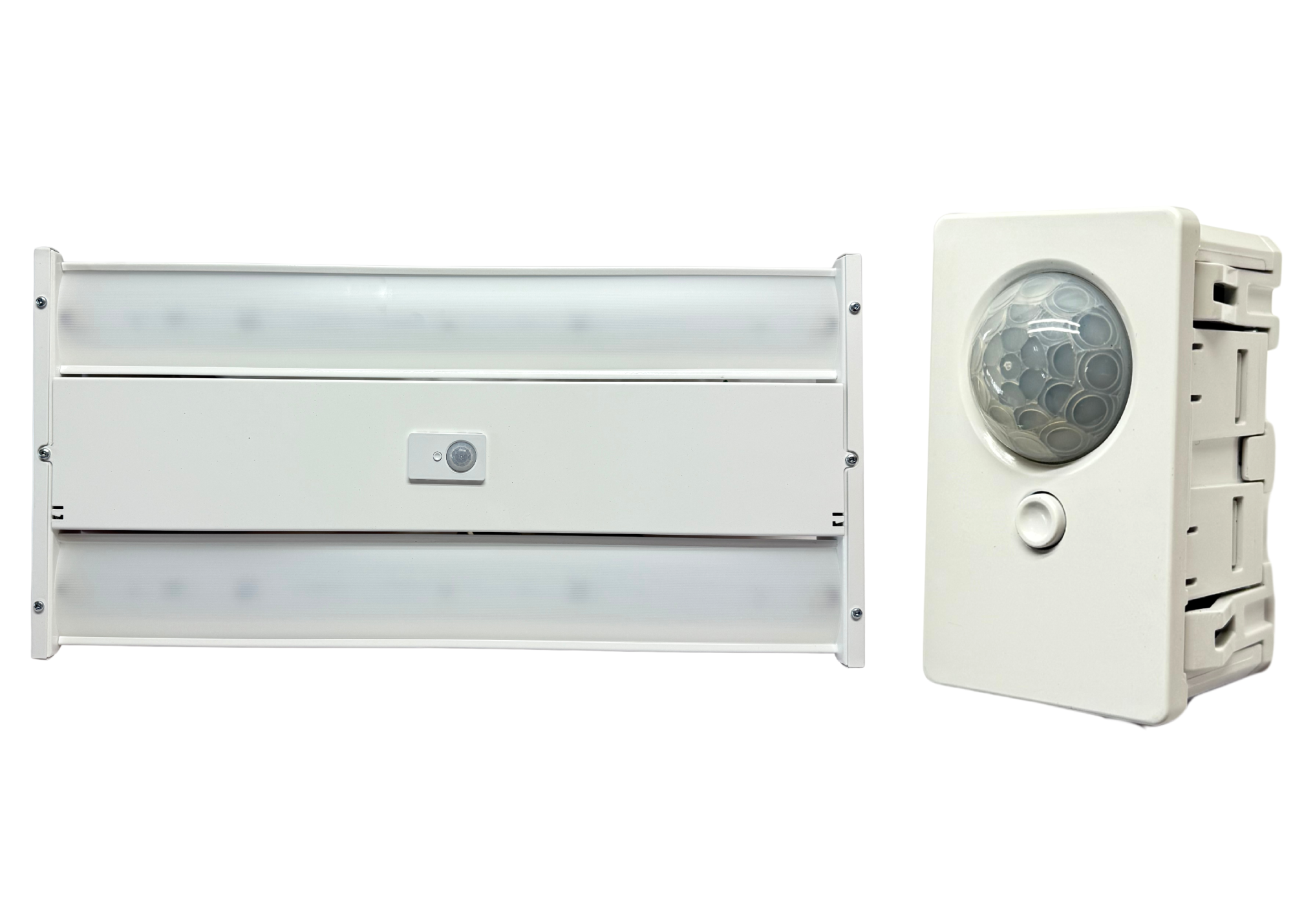

Flush Mount Occupancy Sensor, 347V
Programmable 360° flush mount sensor designed for the BA Series. Provides reliable motion detection at mounting heights from 10-40 feet, ensuring full-room coverage and energy savings. Ideal for Agricultural, industrial, and commercial spaces.
Flush Mount Occupancy Sensor, 120-277V
Programmable 360° flush mount sensor designed for the BA Series. Provides reliable motion detection at mounting heights from 10-40 feet, ensuring full-room coverage and energy savings. Ideal for Agricultural, industrial, and commercial spaces.
2 Foot Lid With Sensor Cutout
Specifically designed for 2-foot BA-Series models, this replacement lid is required when installing the flush mount occupancy sensor. Ensures a secure fit and proper functionality.

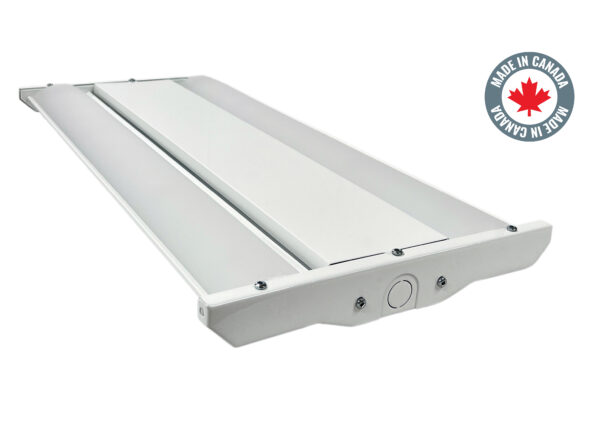

2 Foot Frosted Smooth Acrylic Lens
Frosted diffusers help reduce the sharpness of the LED's. They can be removed or applied any time with a simple click in design. Sold in single units, 1 lens per LED strip is required in all BA Series models.

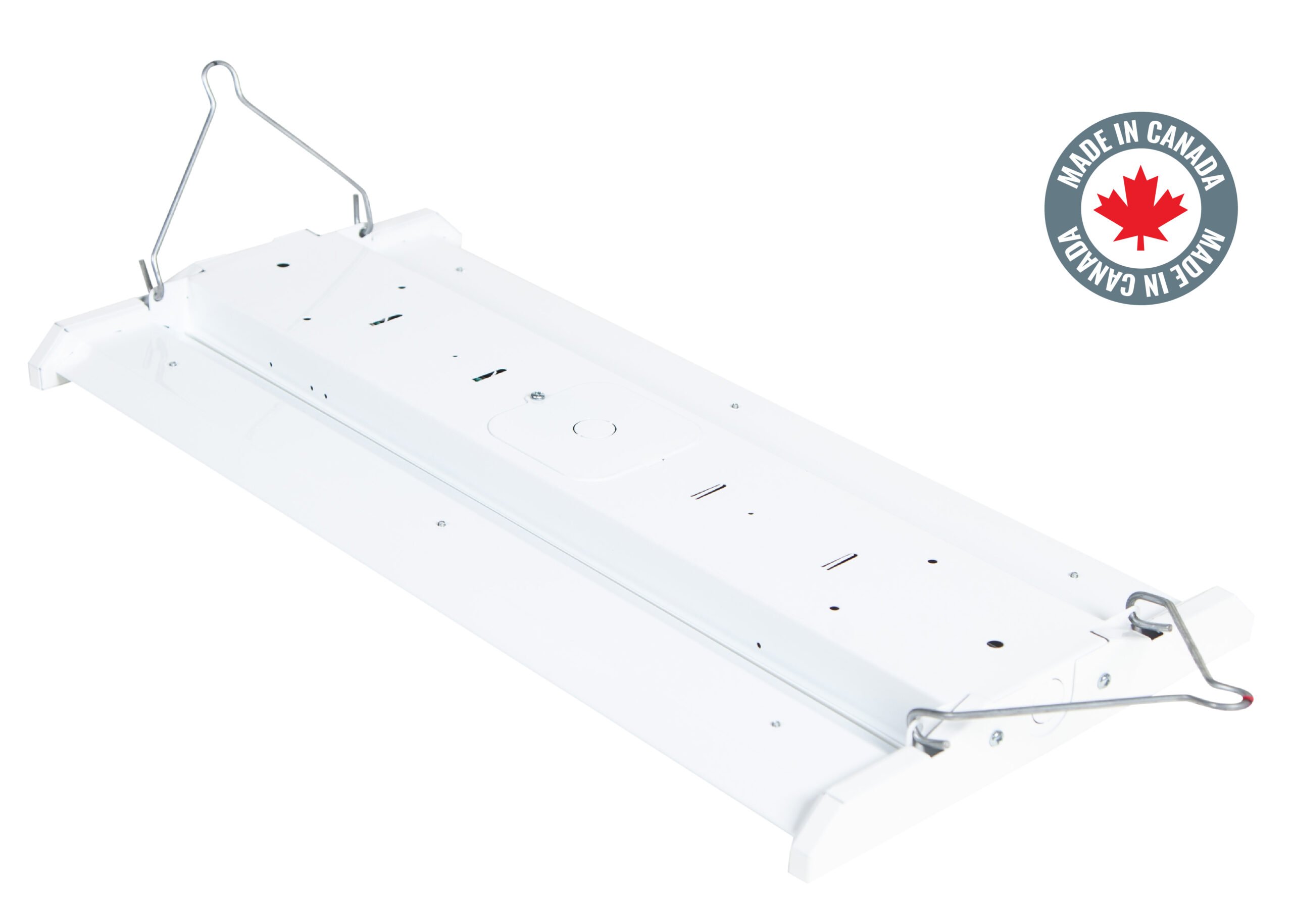

Chain Mount Hook For BA-Series Fixtures
Easy mount chain hanger hook for BA-Series fixtures Attach the hooks to the fixture and then connect your chain Two hooks are required per BA Series fixture.
