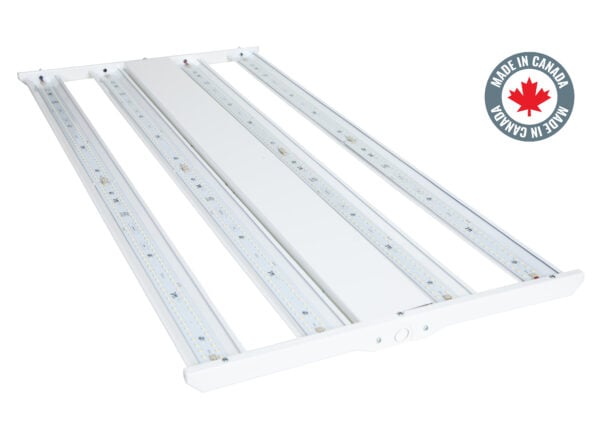

The BA Series 2’x4’ fixture is precision-engineered for expansive illumination with a wide 120-degree distribution angle, making it ideal for applications requiring broad coverage. Designed for mid to high ceilings, it offers versatility with various lumen packages and mounting options. Its robust thermal design ensures reliable performance in challenging conditions, suitable for installation heights from 20 to 50 feet. Handcrafted in Ontario, Canada, it’s the ideal choice for your lighting needs.
This unit is a great option for industrial, commercial or agricultural buildings such as metal fabricating shops, woodworking shops, storage sheds, warehouses, drive sheds, on farm shop’s, grocery stores, tool stores, airplane hangers, hockey rinks, hobby shops and many more. Recommended Installation Height Is 20 to 50 Feet.
Approved for use in Canada and USA, QPS Certified
Standard 5 year warranty, view our warranty policy for full details
| CRI | CCT | Lumens |
|---|---|---|
| 8C 80 | 30K 3000K | 390L 39,000 Lumens |
| 9C 90 | 40K 4000K | 360L 36,000 Lumens |
| - | 50K 5000K | 330L 33,000 Lumens |
| - | 65K 6500K | 300L 30,000 Lumens |
| - | - | 270L 27,000 Lumens |
| - | - | - |
| Voltage | Driver | 0-10V Wiring |
|---|---|---|
| UNV 120-277V | D1 0-10V 1% | NW Not Wired For Dim |
| 347 347V | - | PW Pre-Wired for DIM |
| - | - | - |
| - | - | - |
| - | - | - |
| - | - | - |
| Lens | Mounting | Options |
|---|---|---|
| NL No Lens | SM Surface Mount | Blank None |
| FS Frosted Smooth | CH Chain Hanger Hooks | RTP Retail Packaging |
| - | - | CD3 3’ Whip Pre-Wired (Black) |
| - | - | MS5 Motion Sensor for Aisleway |
| - | - | MS4 Motion Sensor For 360 |
| - | - | RBP Relfectance Back PLate |
| CRI | CCT | Lumens |
|---|---|---|
| 8C 80 | 30K 3000K | 390L 39,000 Lumens |
| 9C 90 | 40K 4000K | 360L 36,000 Lumens |
| - | 50K 5000K | 330L 33,000 Lumens |
| - | 65K 6500K | 300L 30,000 Lumens |
| - | - | 270L 27,000 Lumens |
| - | - | - |
| Voltage | Driver | 0-10V Wiring |
|---|---|---|
| UNV 120-277V | D1 0-10V 1% | NW Not Wired For Dim |
| 347 347V | - | PW Pre-Wired for DIM |
| - | - | - |
| - | - | - |
| - | - | - |
| - | - | - |
| Lens | Mounting | Options |
|---|---|---|
| NL No Lens | SM Surface Mount | Blank None |
| FS Frosted Smooth | CH Chain Hanger Hooks | RTP Retail Packaging |
| - | - | CD3 3’ Whip Pre-Wired (Black) |
| - | - | MS5 Motion Sensor for Aisleway |
| - | - | MS4 Motion Sensor For 360 |
| - | - | RBP Relfectance Back PLate |
| CRI | CCT | Lumens |
|---|---|---|
| 8C 80 | 30K 3000K | 390L 39,000 Lumens |
| 9C 90 | 40K 4000K | 360L 36,000 Lumens |
| - | 50K 5000K | 330L 33,000 Lumens |
| - | 65K 6500K | 300L 30,000 Lumens |
| - | - | 270L 27,000 Lumens |
| - | - | - |
| Voltage | Driver | 0-10V Wiring |
|---|---|---|
| UNV 120-277V | D1 0-10V 1% | NW Not Wired For Dim |
| 347 347V | - | PW Pre-Wired for DIM |
| - | - | - |
| - | - | - |
| - | - | - |
| - | - | - |
| Lens | Mounting | Options |
|---|---|---|
| NL No Lens | SM Surface Mount | Blank None |
| FS Frosted Smooth | CH Chain Hanger Hooks | RTP Retail Packaging |
| - | - | CD3 3’ Whip Pre-Wired (Black) |
| - | - | MS5 Motion Sensor for Aisleway |
| - | - | MS4 Motion Sensor For 360 |
| - | - | RBP Relfectance Back PLate |
BA Series, Chain Mount Hook
Easy mount chain hanger hook for BA-Series fixtures
Attach the hooks to the fixture and then connect your chain
Two hooks are required per BA Series fixture

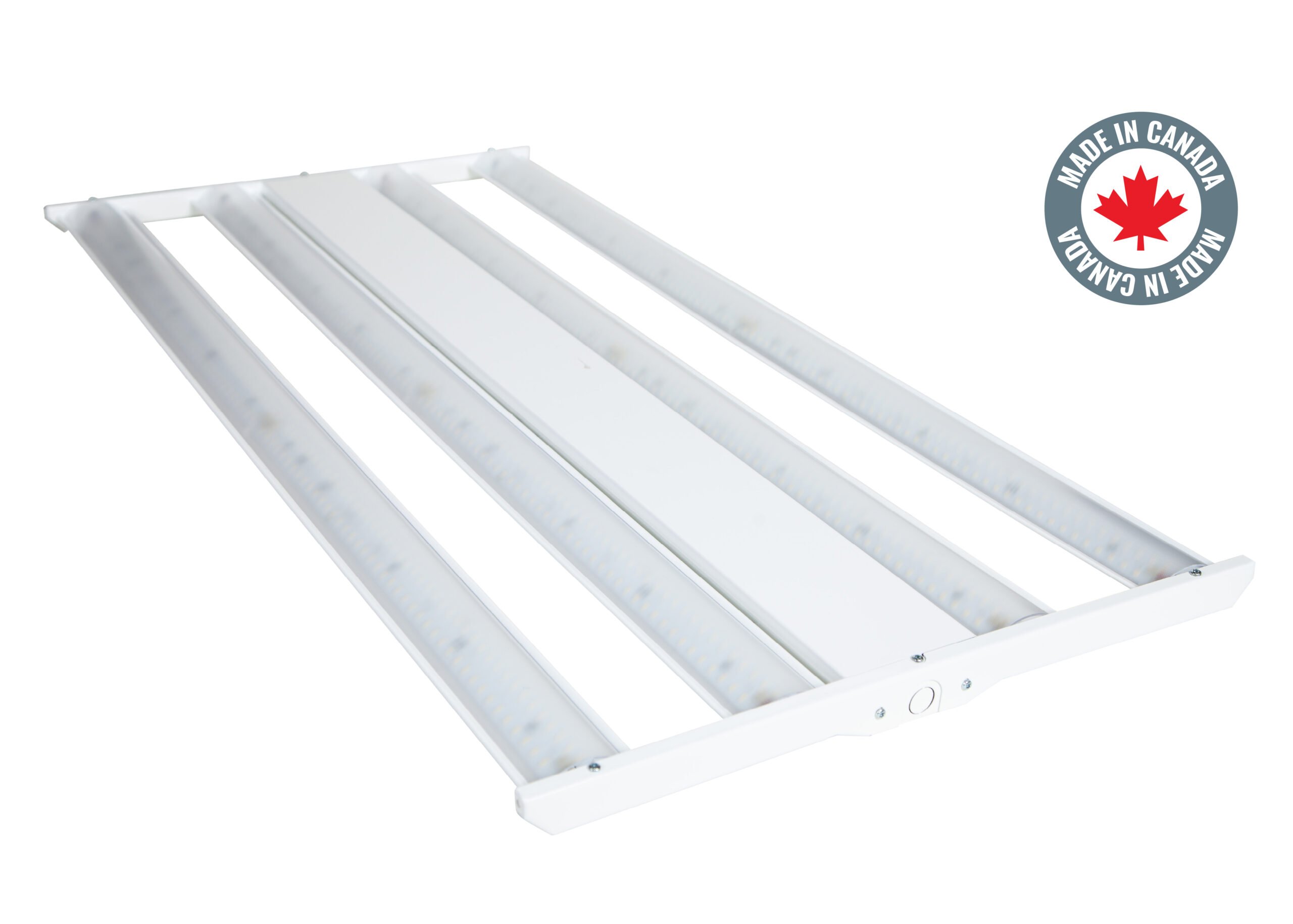

BA Series, 4 Foot Frosted Lens
Frosted diffusers help reduce the sharpness of the LED's
They can be removed or applied any time with a simple click in design
Sold in single units, 1 lens per LED strip is required in all BA and SP Series models
